New & Reconditioned Conveyors & Conveyor Systems
Producing Conveyor Systems In Southern California for Local and Nationwide Sales

Belt Conveyors

Belt conveyors are the most economical way to transport your product Solutions using light duty to heavy duty slider bed and roller bed belt conveyors.

Belt conveyors can be used to elevate or lower your product as required. Fitted with trough side guards, they also are an excellent choice for trash removal and other bulk handling applications.

At Ingalls Conveyors, we manufacture, design, and re-manufacture live belt conveyors. We are also a direct distributor for several major conveyor manufacturers and have the unique ability to save our customers a substantial amount of money by integrating new conveyor components with refurbished components as appropriate. Our refurbished conveyors come with an “AS NEW” warranty.

Please call 1-800-826-4554 or email info@ingallsconveyors.com to contact one of our engineering staff members about your specific belt conveyor requirements.

Use the tabs below to browse the types of Belt Conveyors available:

Applications / Features:

  • Packing
  • Inspecting
  • Sorting
  • Assembly
  • Testing
  • Transporting

Optional Colors available at extra cost.

Optional Colors available at extra cost.

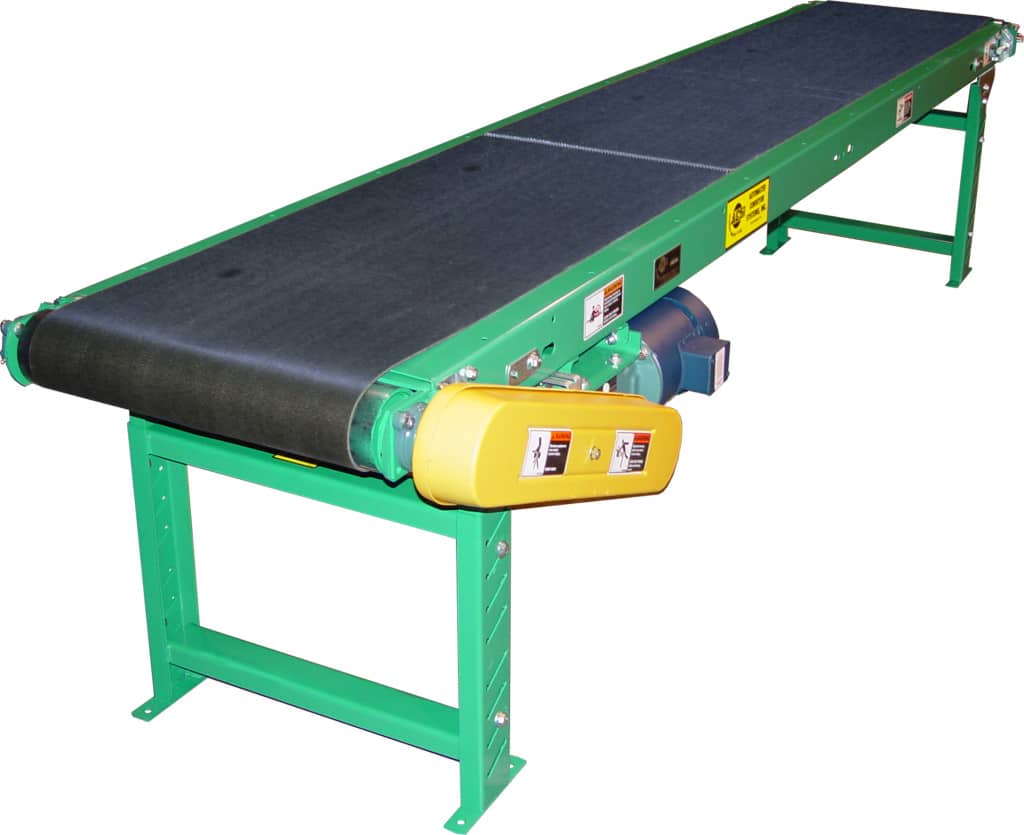

Standard Specifications:

Belt – 8″, 12″, 18″, 20″, 24″ and 30″ Black PVC 120 Belt.
Bed – 12 gauge powder painted formed steel, 4″ deep.  Bed sections are 5 feet and 10 feet long, bolted together with spice plates and floor supports.
Tail Pulley – 4″ diameter crowned with 1-3/16″ diameter shaft.
Drive Pulley – 4″ diameter and 8″ diameter crowned and fully lagged.  4″ diameter pulley with 1-3/16″ diameter shaft, 8″ diameter pulley with 1-7/16″ diameter shaft.
Snub Roller – 2″ diameter (for 4″ diameter drive pulley), 2-1/2″ diameter (for 8″ diameter drive pulley).
Return Roller – 1.9″ diameter adjustable on 10’0″ centers.
Floor Supports – Adjustable 28-1/2″ to 42-1/2″ from floor to top of belt.  One support supplied at each end of conveyor and at each bed joint.
Take-Up – 6″ long screws located at tail pulley to provide belt tension.
Bearings – Sealed and pre-lubricated with cast iron housings.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 1/2 HP 230/460-3-60 TE motor.
Belt Speed – 60 FPM constant.
Capacity – Maximum load per lineal foot of conveyor – 75 lbs.

Applications / Features:

  • Packing
  • Inspecting
  • Sorting
  • Assembly
  • Testing
  • Transporting

Optional Colors available at extra cost.

Optional Colors available at extra cost.

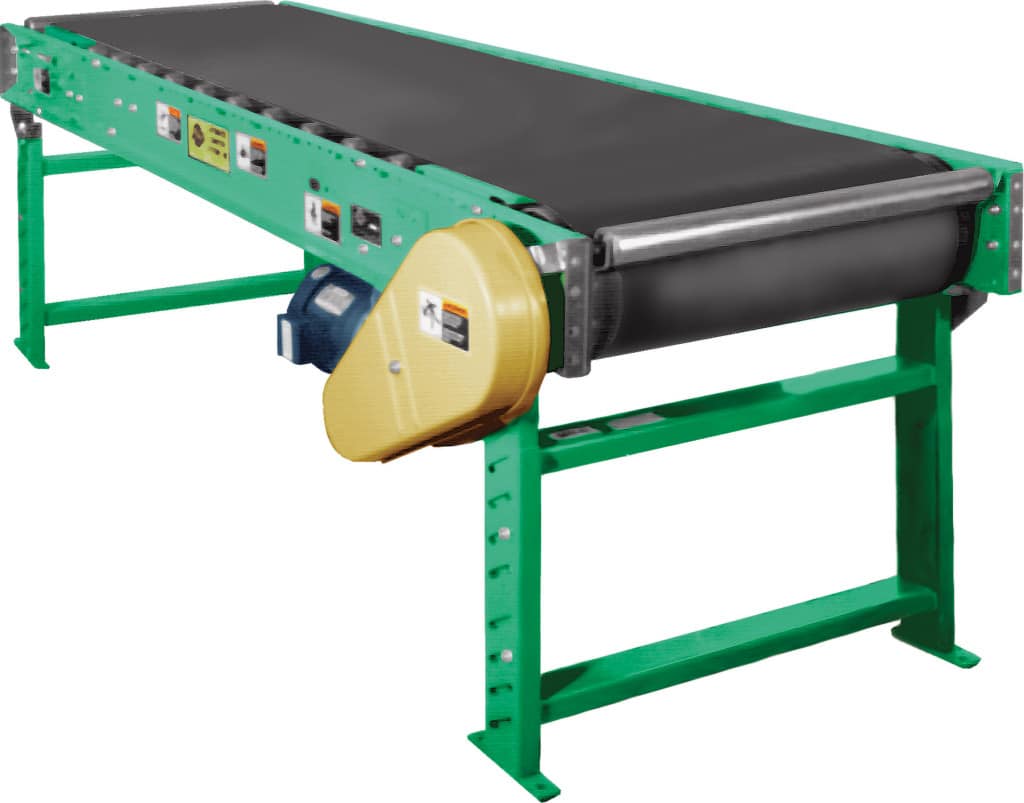

Standard Specifications:

Belt – 12″, 14″, 18″, 24″, 30″ and 36″ Black PVC 120 Belt.
Bed – 12 gauge powder painted formed steel, 6-1/2″ deep.  Bed sections are 5 feet and 10 feet long, bolted together with spice plates and floor supports.
Tail Pulley – 4″ diameter for belt widths through 30″ wide.  6″ diameter for 36″ and wider belts.  4″ diameter pulley has 1-3/16″ diameter shaft, 6″ diameter pulley has 1-7/16″ diameter shaft turned down on ends to 1-3/16″ diameter.
Drive Pulley – 8″ diameter crowned and fully lagged with 1-7/16″ diameter shaft.
Snub Roller – 2-1/2″ diameter directly behind drive pulley; 2″ diameter at tail pulley.
Return Roller – 1.9″ diameter adjustable on 10’0″ centers.
Floor Supports – Adjustable 31″ to 45″ from floor to top of belt.
Take-Up – 6″ long screws located at tail pulley to provide belt tension.
Bearings – Sealed and pre-lubricated with cast iron housings.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 1/2 HP 230/460-3-60 TE motor.
Belt Speed – 60 FPM constant.
Capacity – Maximum load per lineal foot of conveyor – 100 lbs.

Applications / Features:

  • Packing
  • Inspecting
  • Sorting
  • Assembling
  • Testing
  • Transporting horizontally
    or on incline

Optional Colors available at extra cost.

Optional Colors available at extra cost.

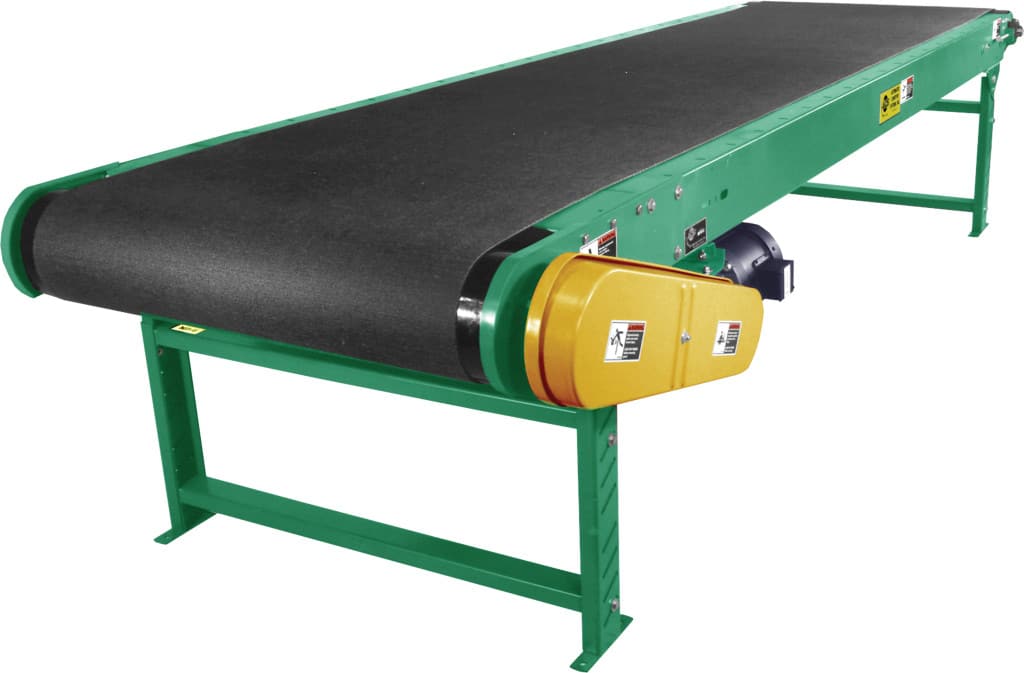

Standard Specifications:

Belt – 12″, 18″, 24″, 30″, 36″, 42″ and 48″ Black PVC 120 belt.
Bed – Roller bed with 1.9″ diameter galvanized steel rollers. Rollers spaced on 6″ centers. Rollers mounted in 7″ deep x 12 gauge powder painted formed steel channel frames. Frames bolted together with butt couplings and floor supports.
X-Bracing – Frame squaring device supplied on conveyors 40 feet and longer for every other bed section. X-bracing insures good product and belt tracking.
Drive Pulley – 8″ diameter crowned and fully lagged, 1-7/16″ shaft.
Tail Pulley – 4″ diameter crowned supplied through 30″ wide belts.  6″ diameter crowned supplied for 36″ and wider belts. 4″ diameter pulley has 1-3/16″ diameter shaft; 6″ diameter pulley has 1-7/16″ diameter shaft turned down on ends to 1-3/16″ diameter.
Pop-Out Roller – 1.9″ diameter roller, Iocated at drive pulley and tail pulley.
Snub Roller – 2-1/2″ diameter adjustable roller, Iocated directly behind drive pulley, 2″ diameter located behind tail pulley.
Return Rollers – 1.9″ diameter adjustable on 10’0″ centers.
Take-Up – Located at tail end, provides 12″ of belt take-up.
Bearings – Sealed-prelubricated with cast iron housings.
Floor Supports – Adjustable 31-1/2″ to 45-1/2″ from floor to top of belt.One support supplied at each end of conveyor and at each bed joint.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 1/2 HP 230/460-3-60 TE motor.
Belt Speed – 60 FPM constant.
Capacity – 200 pounds per foot maximum.

Applications / Features:

  • Adjustable floor supports
  • Incline to 15°
  • Guard rails
  • Economical

Optional Colors available at extra cost.

Optional Colors available at extra cost.

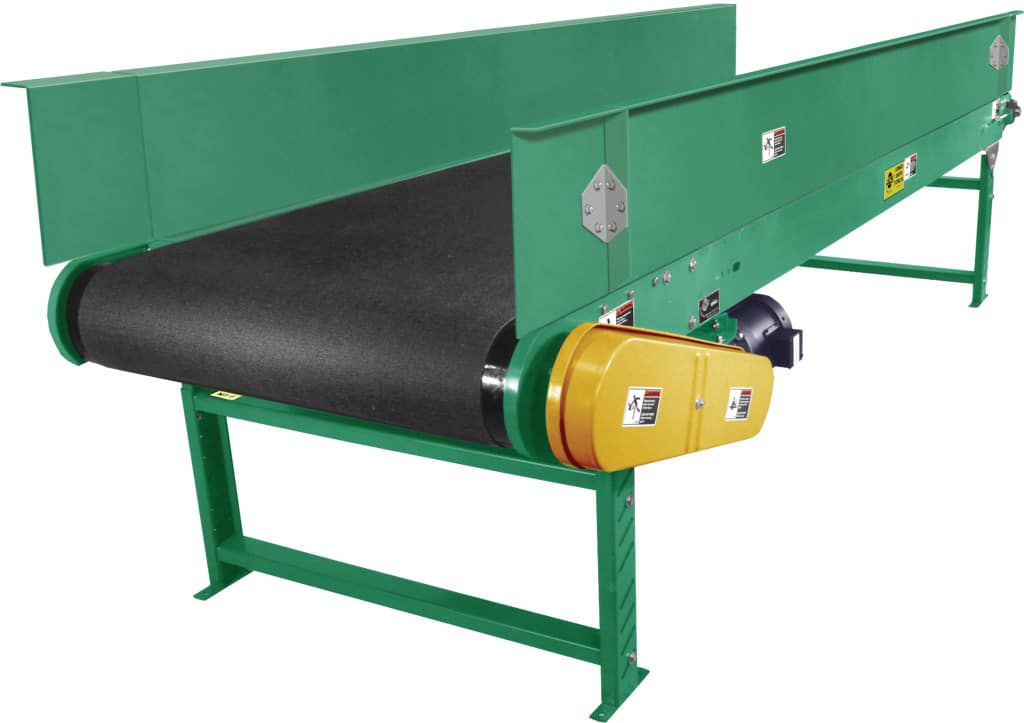

Standard Specifications:

Bed – 5-1/2″ deep x 14 gauge powder painted formed steel channel frame.  Bed sections are 10 feet and 5 feet long, bolted together with splice plates and floor supports.
Belt – 12″, 18″, 24″, 30″, 36″, 42″ and 48″ wide, black PVC 120, FS x FS.
Guard Rail – 6″ high x 16 gauge formed, powder painted steel on both sides, full length of bed sections.
Underside Guards – Formed 16 gauge pans full length of bed sections, removable, secured with TEK screws.
Tail Pulley – 4″ or 6″ diameter (see chart) crowned with 1-3/16″ diameter shaft.
Drive Pulley – 4″, 6″ and 8″ diameter crowned and fully lagged.  4″ and 6″ diameter pulleys have 1-3/16″ diameter shaft, 8″ diameter pulley has 1-7/16″ diameter shaft.
Snub-Roller – 2″ diameter (for 4″ and 6″ diameter drive pulleys), 2-1/2″ diameter (for 8″ diameter drive pulley).
Return Rollers – 1.9″ diameter placed on 10′ centers.
Floor Supports – Adjustable 30″ to 44″ from floor to top of belt.  One floor support provided at each end of conveyor and at each bed joint.
Take-Up – 6″ long screws located at tail pulley to provide belt tension.
Bearings – Sealed, prelubricated with cast iron housings.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 1/2 HP 230/460-3-60 TE motor.
Capacity – 10 pounds per foot maximum live load.
